Garbage-Collecting machines

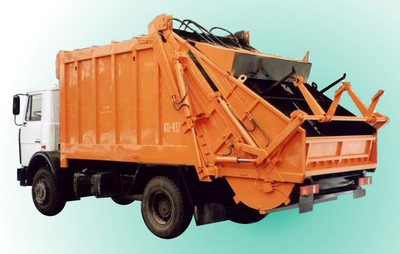

Garbage-Collecting machine

Rear Loading

This Garbage-collecting machine is destined for waste collection and transporting from the private sections.

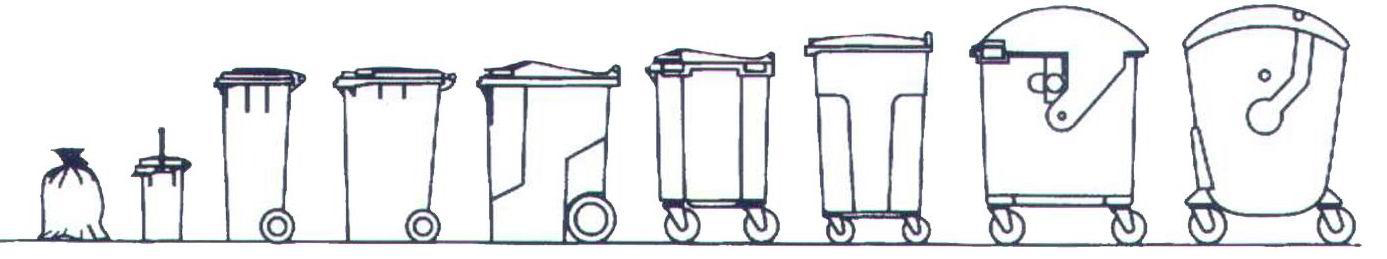

It can operate with Euro industrial wheel containers with volume from 0,125 m3 to 1,1 m3.

A rear board is adopted for manual loading, and is equipped with a receiving hatch for waste. The receiving hatch can more down to 600 mm from the horizontal disposition of the truck.

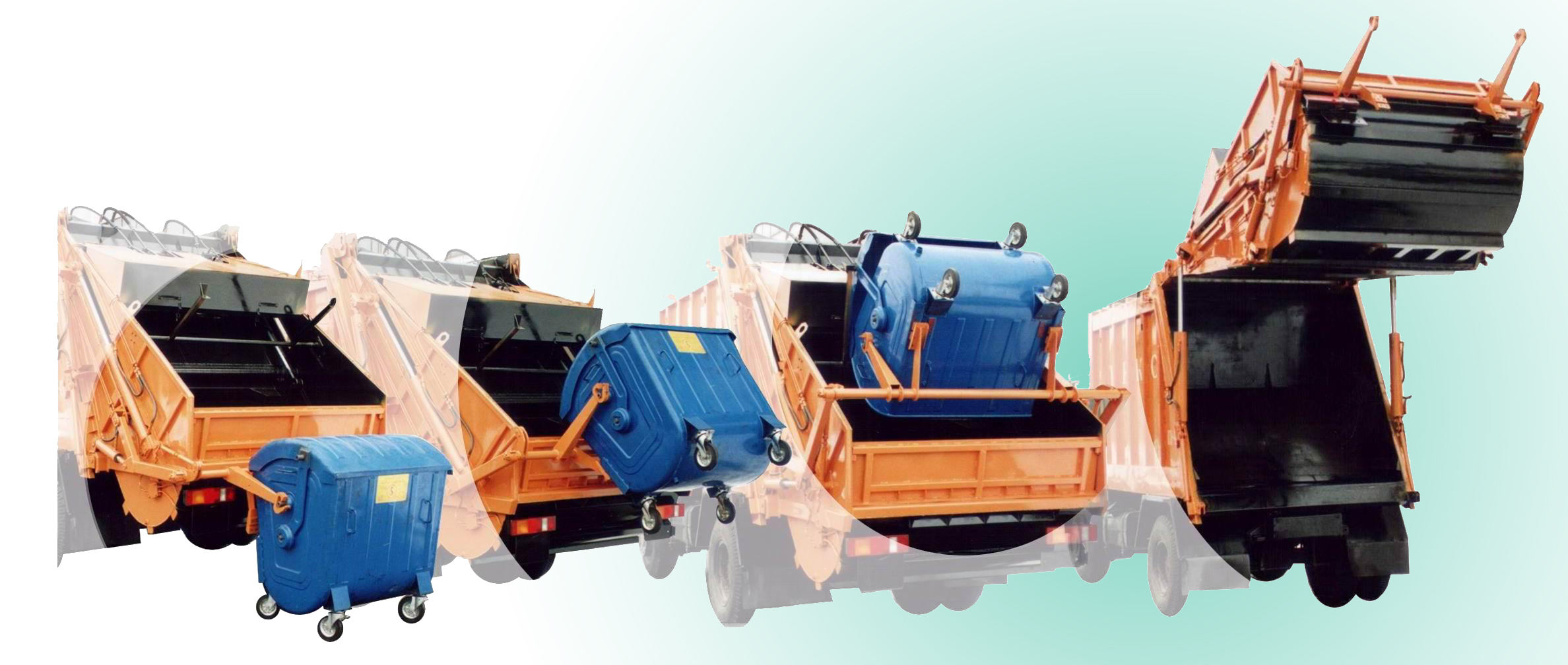

For loading Euro industrial wheel containers rear side of machine is equipped with special manipulator. Net body capacity depends on chassis type and is from 10 to 19 m3. The Manipulator freight capacity is 850 kg.

Garbage-collecting machine is equipped with compression is achieved till 6. it permits to increase the loading amount to 30% of solid household waste.

Speed of machine working process is higher due to axle-piston pump. The painting of the Garbage-collecting machine can be fulfilled in different colors with various kinds of paint.

Garbage-Collecting machine

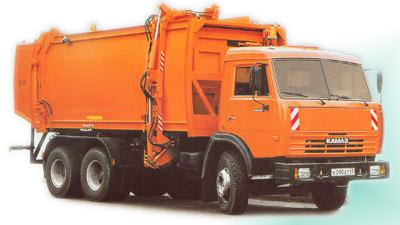

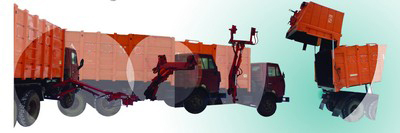

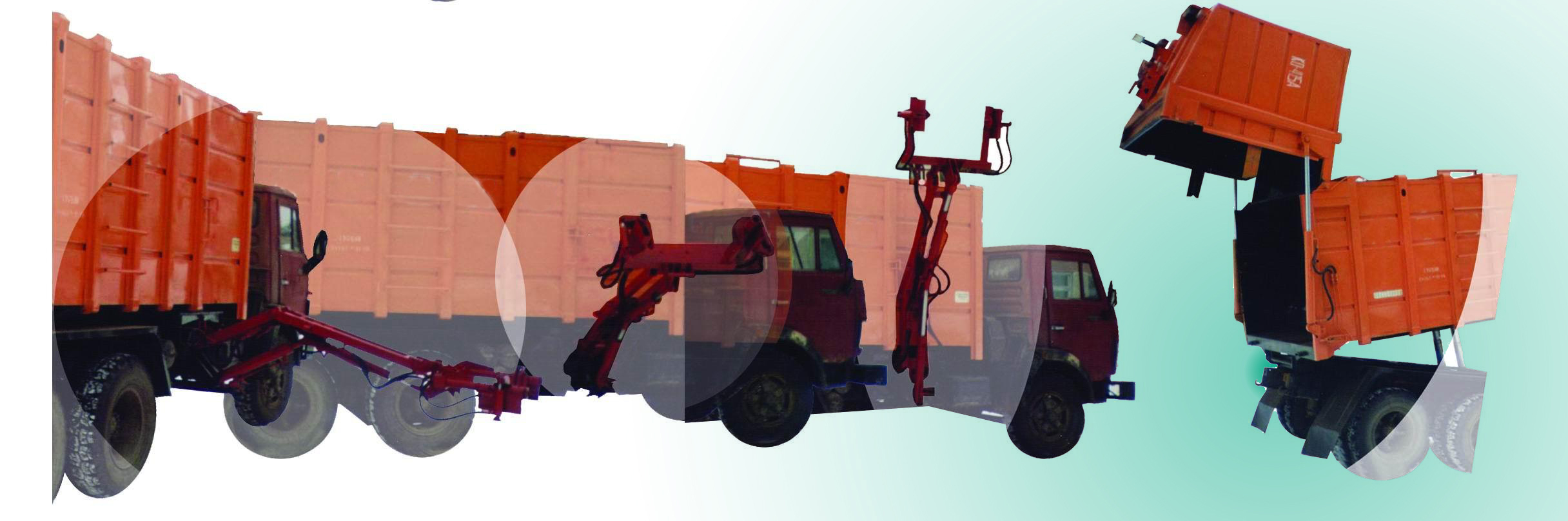

Garbage-collecting machine with side loading collection vehicle is destined for collection and transportation of solid household waste. The loading process is accomplished by means of manipulator of containers with volume 0,75 m3 to 1,1 m3. net capacity of body dipends of chassis type:

Body with capacity 7,5 m3 is assembled on trucks chassis GAZ-3307, chassis freight capacity – 3450 kg of solid household waste.

Body with capacity 10 m3 is assembled on trucks chassis ZIL-433362, chassis freight capacity – 4750 kg of waste.

Body with capacity 12 m3 is assembled on trucks chassis ZIL-433112, chassis freight capacity – 5200kf of waste.

Body with capacity 17-19 m3 is assembled on chassis MAZ-5337 and KAMAZ-43253, chassis freight capacity – 7620 kg of waste.

Body with capacity 19-22,5 m3 is assembled on chassis of KAMAZ-53215, chassis freight capacity – 9370 kg of waste.

Body with capacity 22,5 is assembled on chassis of KAMAZ-53229, chassis freight capacity – 11870 kg of waste.

Manipulator freight is 600kg Garbage-collecting machine is equipped with compressing mechanism. Might ratio of waste compression is achieved at garbage-collecting machine till 3 garbage machines volume.

Machines models KO-413, KO-431, KO-426 and KO-415 meet these requirements, they are producing since 1979.

Their main advantages: reliable, convenience and simplicity.

The equipment is painted in range with paint PF-115 (Kyiv-Lakma enterprise).

Additional possibilities:

• all models can be equipped with different types of claws;

• can be painted in various paints, including synthetical;

• can be equipped with axle-piston hudrollic pump.

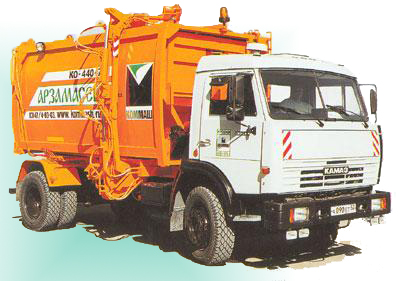

Increasing of the packing tare caused the creating of the new machine with side loading collection vehicle and rised compression data.

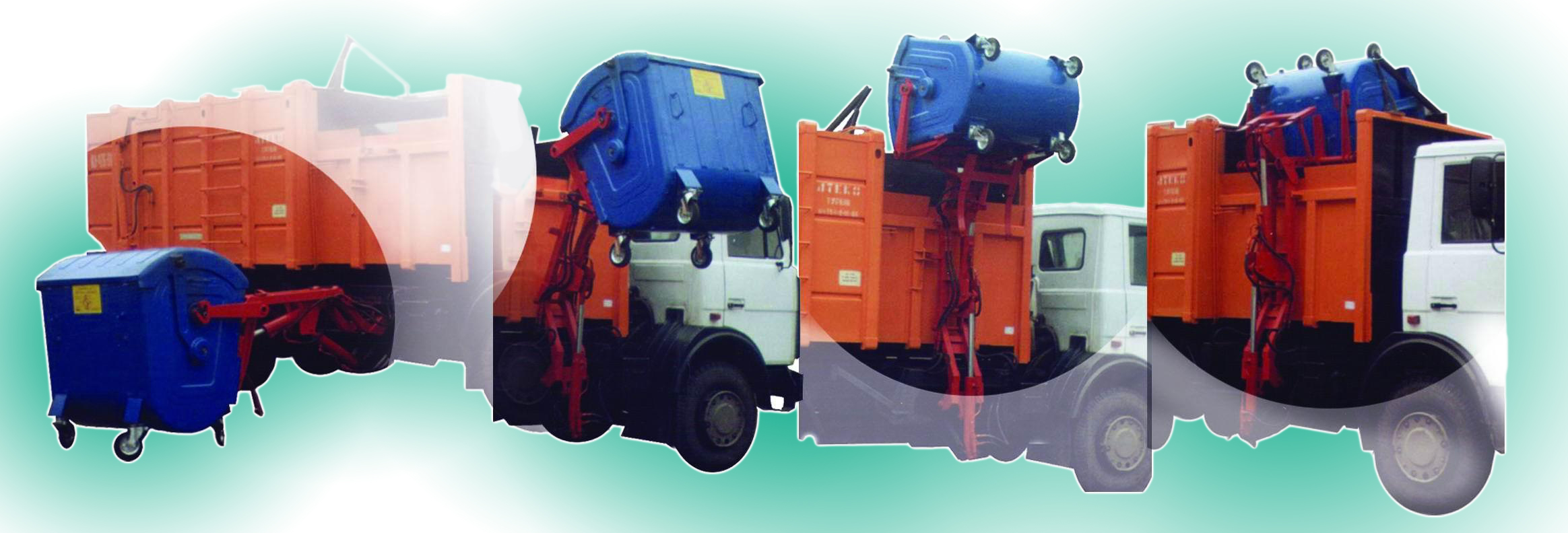

This truck is destined for collection and transportation of solid household waste. Loading process is carrying out with the help of manipulator as from fixed containers with capacity 0,75 m3, as from Euro industrial containers with capacity 0,125 to 1,1 m3. Depending on trucks chassis net body capacity is from 17 to 19 m3. Manipulator freight is 800 kg.

Garbage collecting machine is equipped with compressing mechanism. High ratio of waste compressing (depending on waste fraction) is achieved till 4 garbage collecting machine volume.

Garbage-collecting machine KO-426 won the Exposition “100 best products of Ukraine” and was awarded with Diploma for excellent quality 2003 year.

But the most significant is high productivity reliability with using modern technologies during waste loading and compression.

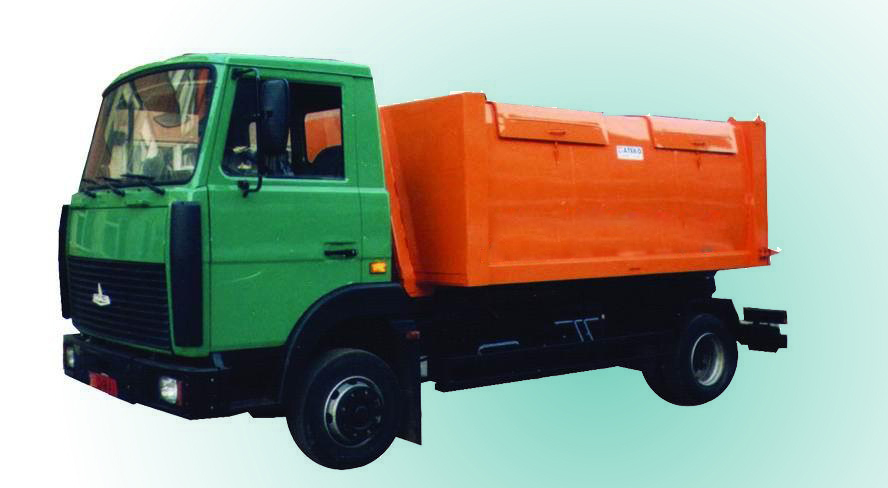

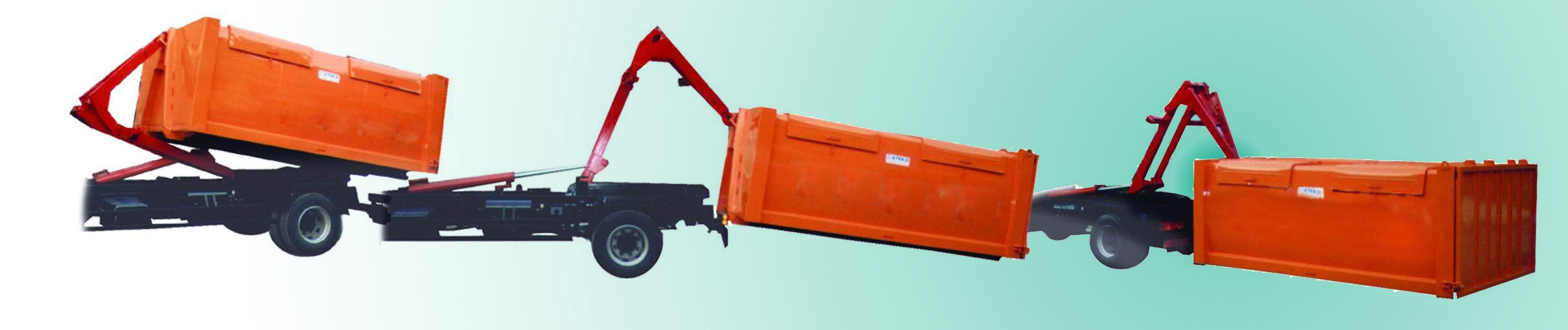

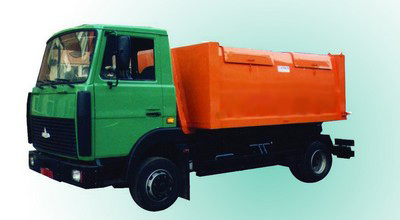

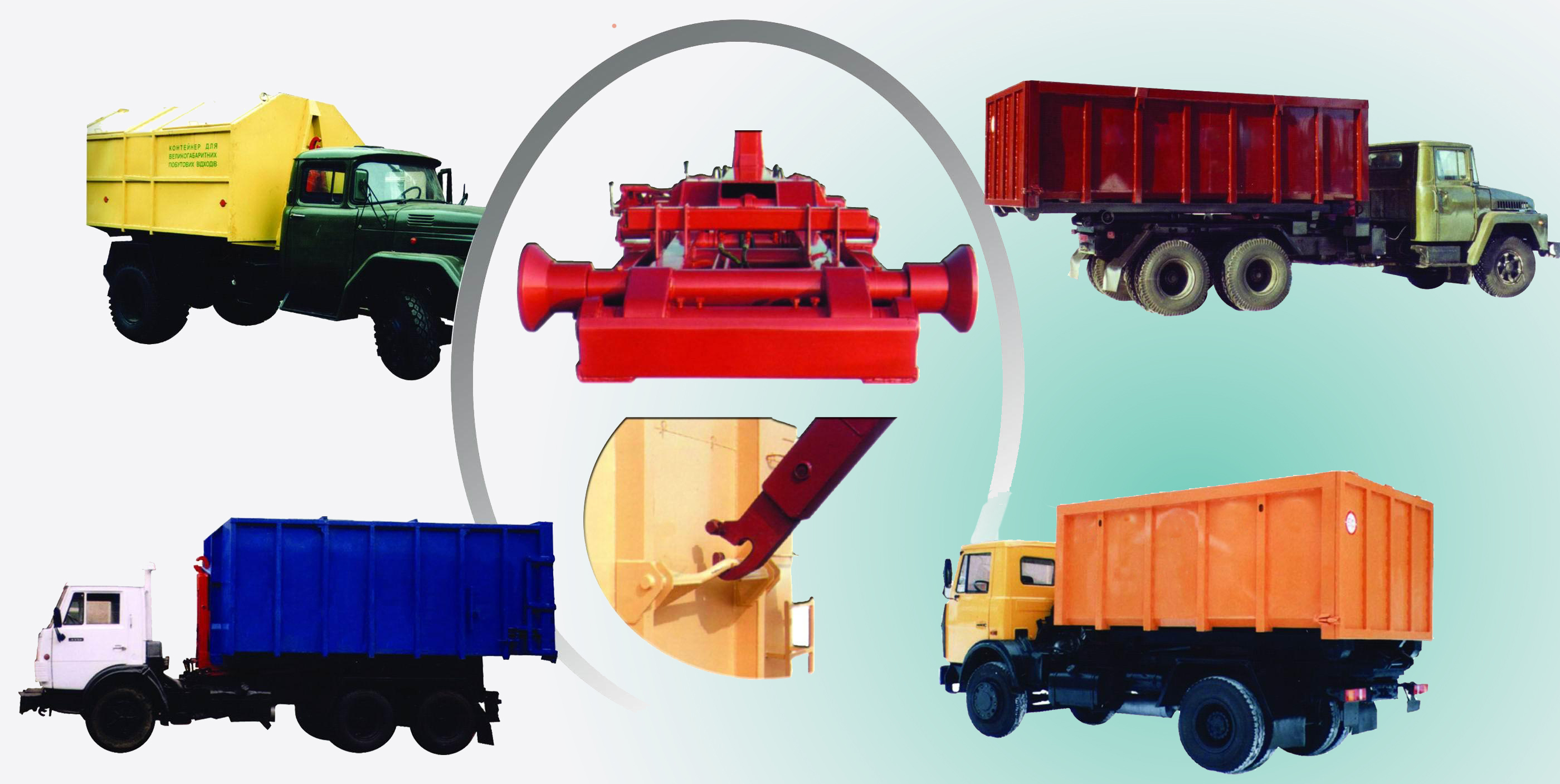

Garbage trucks with hook lifting device KO-425 are used for lifting and transporting special equipment.

The advantage of the truck with hook lifting device KO-425 is its variety field of usage, not only in municipal industry. The driver can control all the working operations from the cabin

Main types of containers: containers for solid household waste, open type of the platform, open type of the body.

Special truck equipment KO-425 is mounted on gas chassis with freight capacity 3,5t, ZIL chassis with freight capacity from 5 to 10t, MAZ chassis with freight capacity from 5 to 22t, KAMAZ chassis with freight capacity from 5 to 20t, KRAZ chassis with freight capacity from 12 to 18t and other kinds of chassis.
