Open Company "Meta" is grounded in 1992 and is the dealer and the supplier of industrial hydraulics and completing factories АТОS and MP Filtres (Italy). By request of the client, the operation realises projection, working out of a construction and manufacture hydraulic oil of stations, hydraulic drives and hydraulic power-plants of different function, their adjustment and start in maintenance.

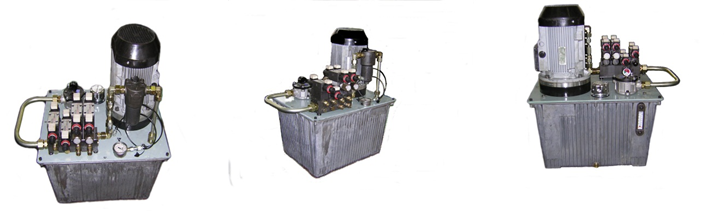

Manufacture of hydraulic-circuit systems.

Open Company "Meta" is occupied by manufacture of hydrostations, realises starting-up and adjustment works, guarantee and послегарантийное service.

Open Company "Meta" has been developed, fabricated and successfully oil station of the pressure filter for an ore prepaaration of Komsomol mountain-concentrating industrial complex works.

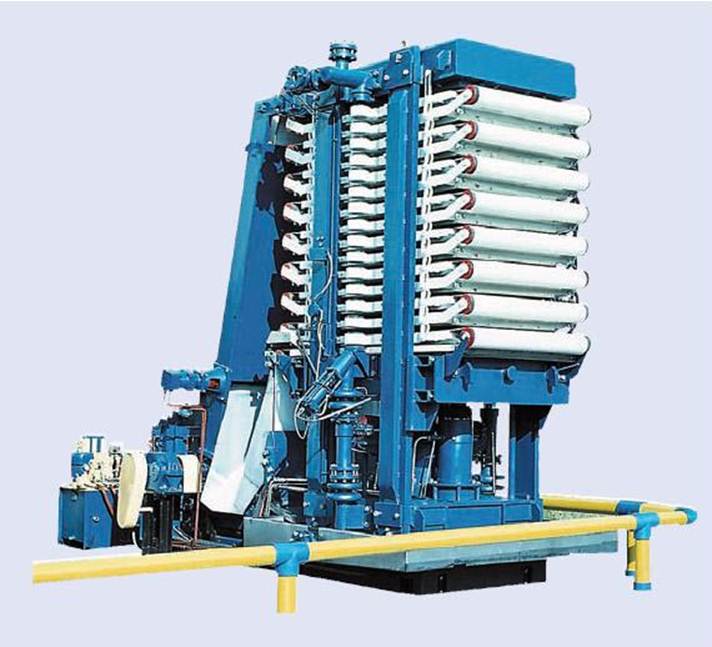

      Specialised tower pressure filters are intended for filtering under an excessive pressure of the suspensions containing weighed particles of rock. The unique construction of the filter can ensure reaching of the highest capacity of process of an ore processing of nonferrous metals — copper, zinc, lead, etc.

Critical parametres and the sizes of the pressure filter:

• area of a surface of filtering, m sq. - 196
• Working environment temperature, hailstones. With - 5-80
• Overall dimensions, mm:

-       Length — 5800

-       Width — 4600

-       Height — 9600

Features of automatic pressure filters of tower type:

• all-around automation of a working process which is not demanding interference of maintenance personnel.
• Adjusting possibility in a wide range of width and damp of a deposit.
• Optimum conditions for regeneration of a fabric in the course of filter operation.
• Unloading and fabric regeneration are combined in one process.
• Low current consumption, minimum expenditures for maintenance and maintenance.
• Complete removal of a deposit.
• Minimum time of auxiliary processes.

Projection of hydraulic circuits, building of hydrostations.

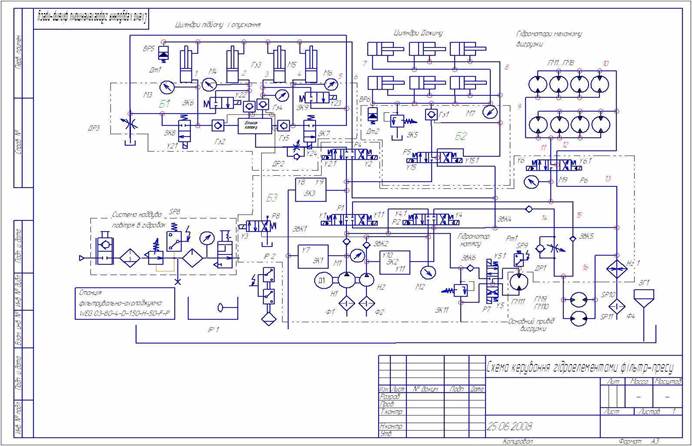

Open Companies "Metas" can be developed hydrocircuits of any complexity. The hydraulic circuit for the press filter is more low reduced.

Working out of a construction and design operations.

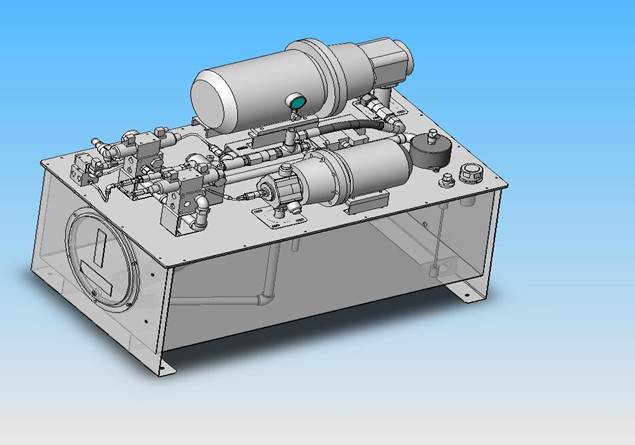

According to the hydrocircuit the project of system with 3D-simulation use is developed.

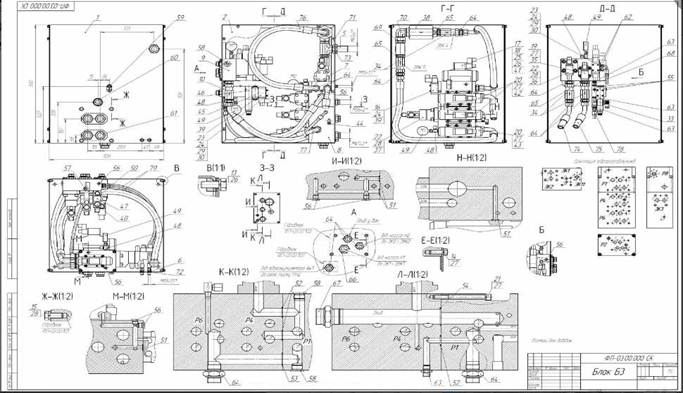

The control package drawing hydraulic barrels of carriage of pressure filter KmPm — 196.

Service and reconditioning.

Open Company "Meta", serves hydraulic systems of any complexity – hydraulic power-plants, oil of station and hydraulic drives. Hydraulics reconditioning as one of the basic and demanded lines of activity of the company, is carried out in the shortest periods on the modern equipment with experimental skilled technicians.

Sale of accessories.

Sale of accessories ATOS: actuators and oil of stations, hydraulics of different function.

Working out and execution of hydraulic system for pressure filter KmPm-196.

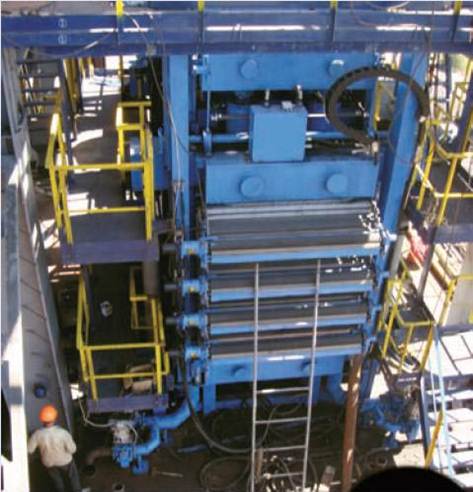

In 2008 on the instructions of an engineering factory "Progress", Ukraine, company "Meta" had been developed the hydraulic system which is ensuring functioning of pressure filter KmPm-196.

The Pressure filter is intended for an ore prepaaration and concentrate deriving. The ore prepaaration occurs by dissolution of ore by water then the received suspension moves through the pipe manifold on the pressure filter where after отжима waters with lean material ore concentrate turns out. Filtering process passes on press КМПм-196 is the modern car allowing for one cycle to receive 18 т of ready concentrate.

Height of the pressure filter 9,6 m,

Gross weight — 75 т

Weight of filtering plates — 16 т

Capacity in changeover — 1400 т ore concentrate.

Carriage of the battery of filters is ensured with the hydraulic power-plant put in action by the electric motor by power of 75 kw. All working process is ensured with hydraulic system which the computer in an automatic mode steers.

All system of hydraulics on the basis of elements ATOS and МP Filters has developed and corporation "Meta" has fabricated.

Manufacture process consisted of following stages:

Hydrocircuit working out. On the instructions of the customer, the hydrocircuit of a press ensuring synchronous operation of pressure squeeze boards, протяжку a filtering ribbon, suspension feeding, operation of all nodes of the pressure filter has been developed.

After the coordination and the assertion the customer of the hydrocircuit, had been developed the designer documentation: drawings and 3-D hydrostation simulation.

After transmission of drawings in industrial department manufacture station oil has begun.
